Re-ARM of a Mini Kossel

Panucatt Devices Re-ARM board Bottom View

     Last month, I covered some of the key upgrades on my mini Kossel, and most of them were things that improve the extrusion path. This time, I'm switching the controller board from an 8-bit Arduino Mega 2560 to a new 32-bit Smoothieware-based board called the Re-ARM for Ramps.

New and Old: Re-ARM/Ramps (top right), Arduino Mega2560 (bottom left)

     Physically installing the Re-ARM was fairly simple, I just needed to remove the print bed and lift the Ramps assembly out from underneath. After that, a few minutes work with some pliers to gently separate the Mega and Ramps boards, then mount on the Re-ARM's headers with some gentle pressure until things are snug. Don't forget to set the Re-ARM's power mode before installing the Ramps, it's impossible to change the jumper with it in-place.

Re-ARM/Ramps with mounting bracket (on the left)

     After assembling the boards, I found that my Mega2560 mount was incompatible with the Re-ARM's footprint - mostly just a tolerances issue, the mounting bracket I was using is a bit sloppy, so I loaded the Re-ARM's digital reference into Fusion 360 and drew up the bracket above. It's designed to raise the Re-ARM to just the right height to allow the optional Ethernet adaptor to pass between the 2020 t-slot extrusions on the Kossel's base, and bolts down with a couple of #6 or M4 wood screws. The STL for it is here.

Re-ARM/Ramps mostly installed

    Once the main boards where installed, it was time to add the graphics display. With the Arduino Mega, I'd used a Smart Controller display panel, but it wasn't compatible with the Re-ARM so I swapped it out for a Full Graphics Controller instead. The only real gotcha with using this display on the Re-ARM is that you need to splice part of the EXT2 cable to tap into one of the 5V rail pins since the main logic rails are operating at 3.3V.

Spliced line on EXT2 cable, it's the edge opposite the red reference line

5V pin for EXT2 splice

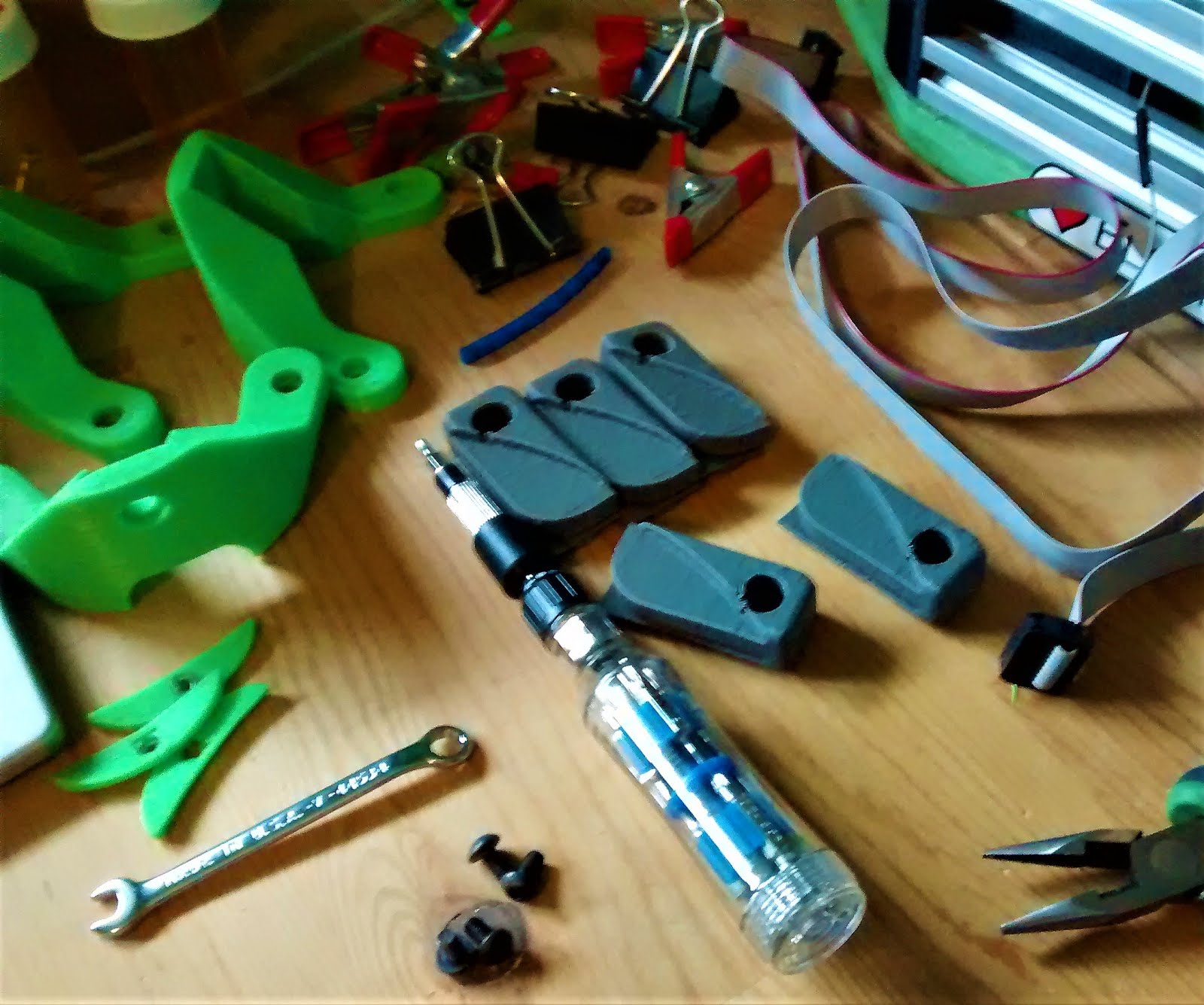

     And with that plugged in, I used the Micro Kossel to print some mounting brackets from Thingiverse for the display and then used some M3x20mm screws to install them.

Full Graphic Controller with Mounting brackets waiting for installation

Using zip-ties for cable management, helps keep things nice and tidy

Bracket fully installed using M4x0.8mm cap screw and M4 hex nut

     With that installed, all that's left is to remount the print-bed and deal with the software side of things. I'd originally used 3 M3x20 screws to hold the print-bed down, but these made it very vulnerable to warping and difficult to level after a reinstall, essentially requiring recalibration every time I needed to access the electronics. After running across thing: 1982435, I decided to make my own version with an extra slot for my heat shielding. Files are here.

Print-bed mounting blocks waiting for install

Test fitting heat shield

Finalizing exact positioning, note the M3x20mm screw and bolt for holding glass

     After sorting the heat shield, I still had a minor issue with the bed trying to float on top of the mounts, so I drafted up some extra wide M4 washers to hold things in place with some spare M4x20mm bolts I had left over from another project. You can see the floating issue in the next picture's lower left corner.

M4x20 bolts and custom washers waiting for final installation

Glass holder clip with M3 thumb wheel for holding the 195mm glass down

     As for holding the Buildtak/glass plate combo I use for an actual print surface onto the print-bed, my glass is an odd 195mm diameter, not the more standard 200mm or 220mm that you normally see, so the glass clips are customized for it. With that installed, it was largely just a matter of learning how to configure Smoothieware with the Mini Kossel's parameters, the official documentation, combined with the Re-ARM's setup guide were fantastic on this, then the usual calibration and it's done.

Retrofit complete, ready to print

Project: Proteus Delta, part 7

Proteus build plate

Happy New Year! Today it's all installing the heat-bed and it's supports. I'm using one of Ultibots 300mm print-bed kits, the same setup used in their D-300 design, so I needed a support that could grip the edges of the bed with minimal overlap. I'd measured the spacing on the bed mounting brackets early on, so it was mainly a matter of drawing up something that would work for 3D printing in Fusion 360. The STLs for my final design are here.

Proteus print-bed support parts ready for assembly

     The parts are all designed to fit on my Mini Kossel's 180mm bed, each wedge takes about 2 hours with 0.2mm layers at 50% infill, so about 18 hours total for a full set of 9. For fasteners, you'll need 40 M3x16mm screws, 50 M3 nuts, and 6 M3x40mm screws for anchoring the bed layers together and to the lower frame. Assembly is fairly straightforward, I just used a screwdriver and wrench for the fasteners, along with some spring clamps to hold things in place during assembly.

Assembly tools for the print-bed support

Support half-assembled, note the use of clamps to secure parts

Fully assembled bed support

    I've printed the parts in PLA, so I'm using a couple of these Pyron flame protectors for bed insulation, I've been using the same thing on my Mini Kossel for almost a year and haven't had any problems.

Cutting pattern for flame protector

Print-bed stack cross section

     Once the insulation is installed, it's simply a matter of tightening the bed clamps into place with some M3 nuts or thumbwheels, I'm using these printable ones from Thingiverse.

M3 nuts, screws, and printed thumbwheels

Bed clamp ready for tightening

Print-bed ready for final install

Once the bed clamps are tightened, the only step left is to connect the thermistor and power leads to the Duet 0.8.5 and level things so the bed surface is square to the towers.

Heat-bed connectors on Duet 0.8.5

Print-bed installed and squared

     And that's it for now, next time it'll be assembling the effector and Prometheus system.
